3/4 in. x 4 ft. 8/2 & 10/1 Non-Metallic Flexible Liquidtight A/C Electrical Whip (1-Pack)
Part # BACWNM843
Bergen's Non-Metallic Liquidtight A/C Whip kits come completely pre-assembled and ready to install. Three (3) conductors are included with the highly More...
WHERE TO BUY

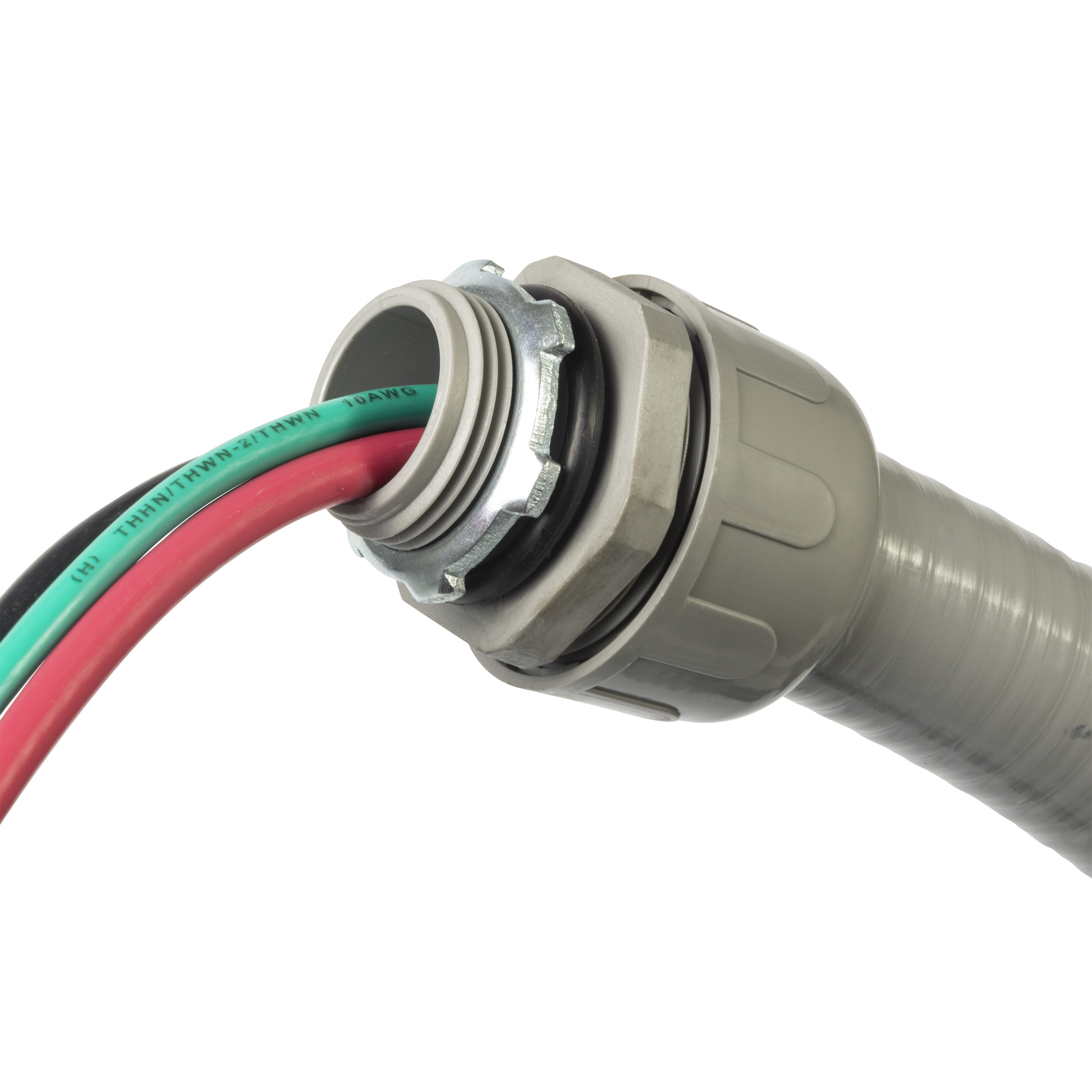

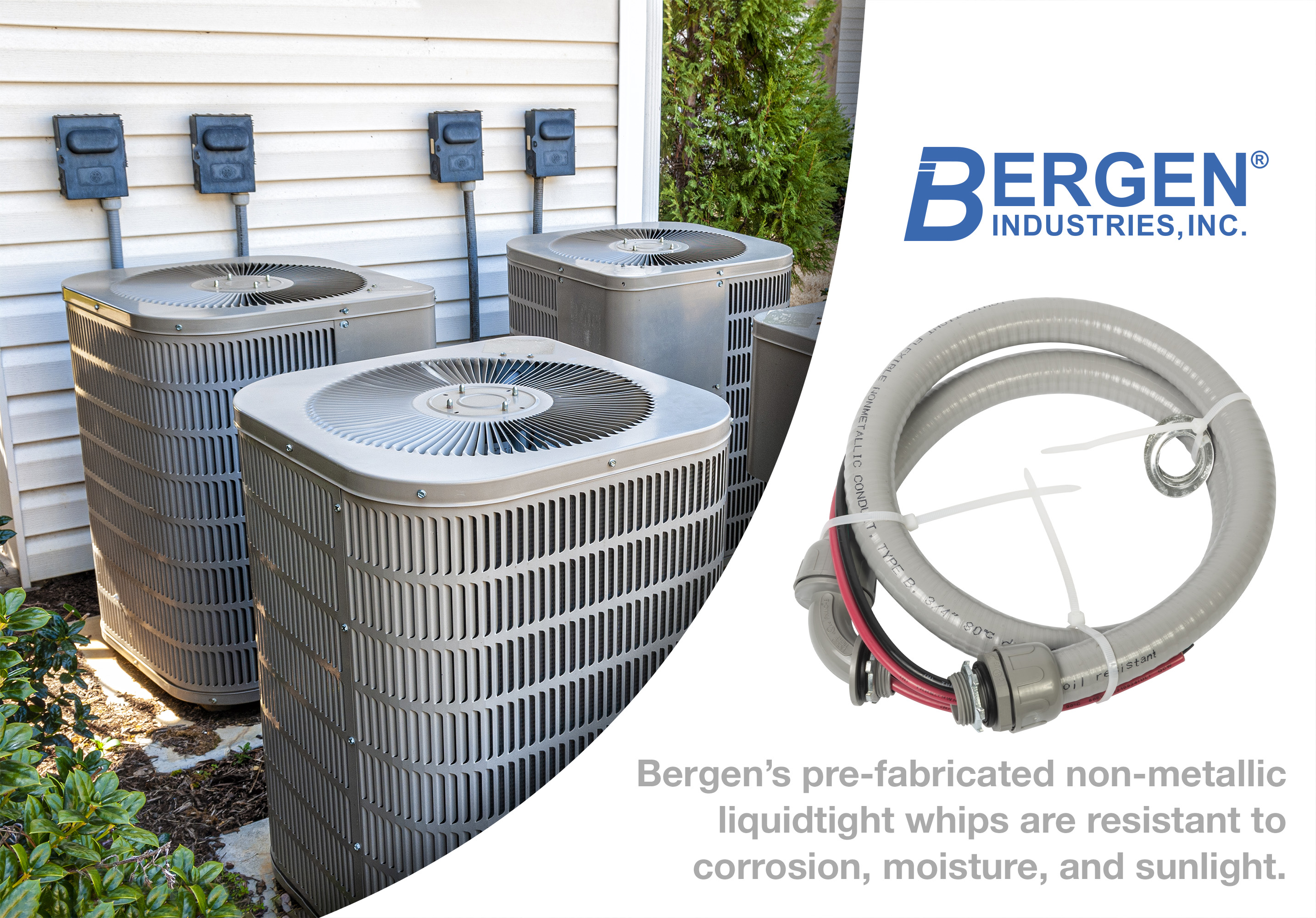

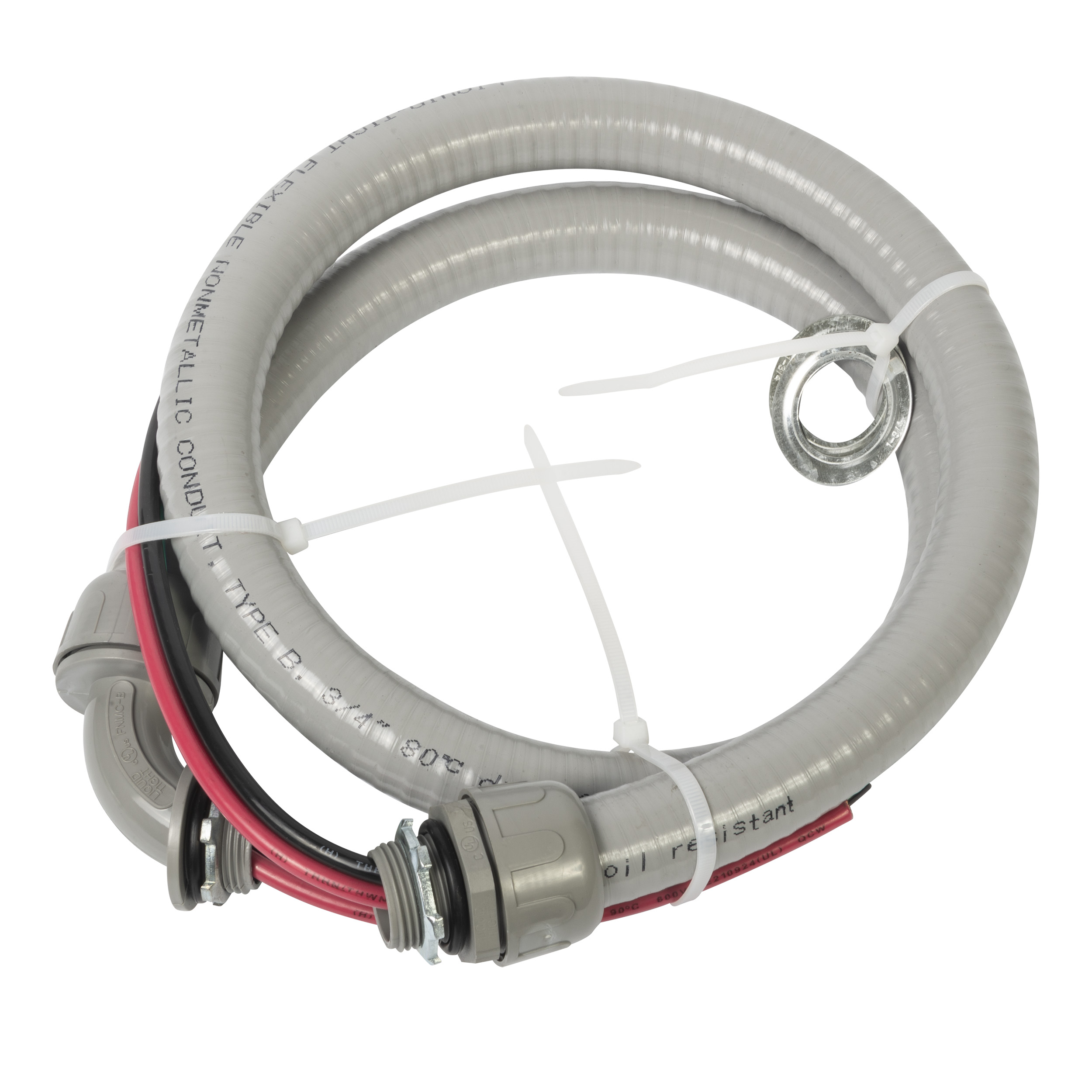

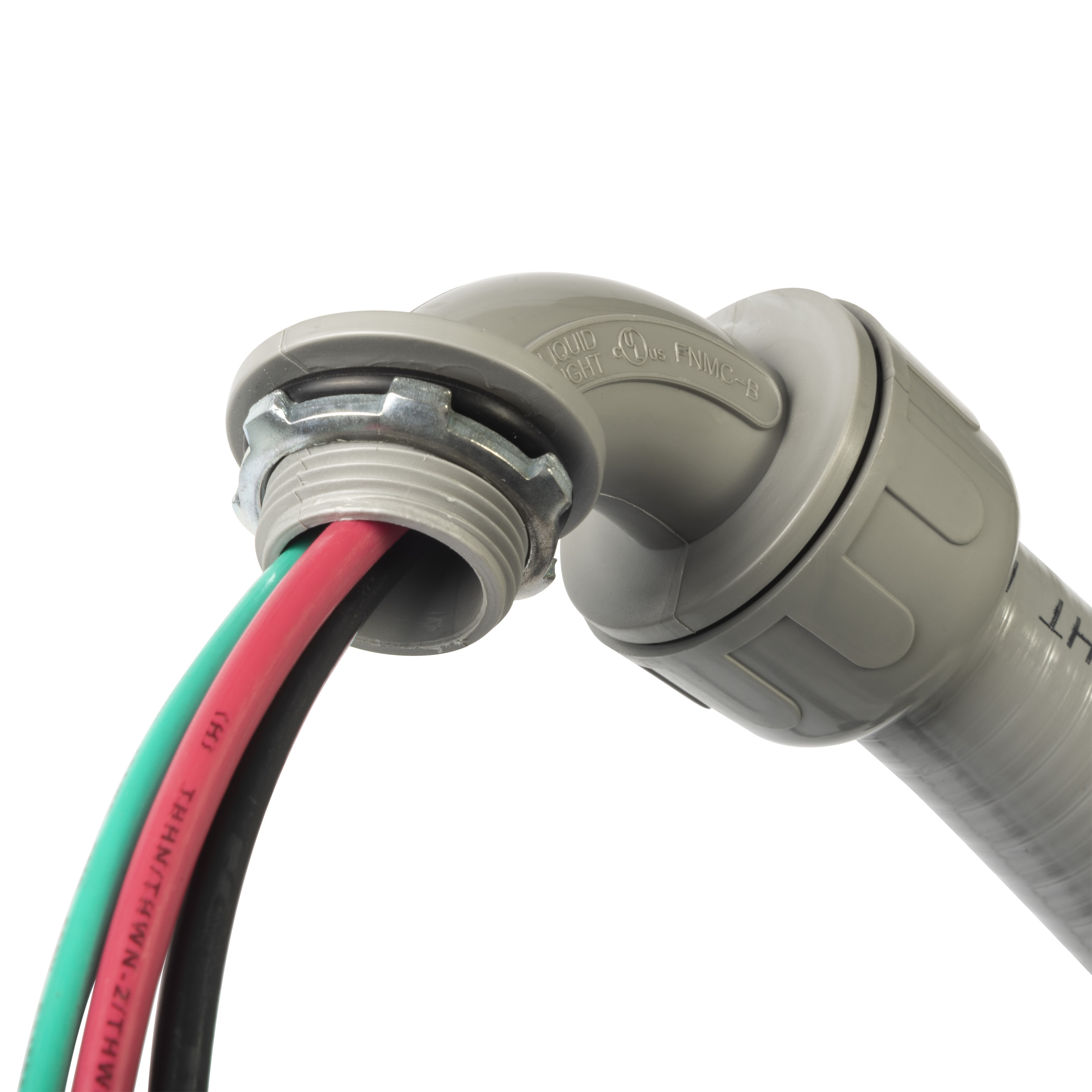

Bergen's Non-Metallic Liquidtight A/C Whip kits come completely pre-assembled and ready to install. Three (3) conductors are included with the highly flexible conduit using both 8 and 10 AWG THHN conductors. Comes with both standard 3/4 in. straight and 90-degree compression type fittings. The 6 in. wire leads are exposed at each end with 1/2 in. insulation stripped for hassle-free hook-ups. UL Listed and meets the requirements of the 2017 National Electrical Code. Commonly used for air conditioners, heat pumps, refrigeration, swimming pools, hot tubs, saunas and outdoor lighting.
- Liquidtight flexible non-metallic PVC whip
- Stranded copper THHN//THWN
- Intended for 208/240/480V single phase
- Includes ground wire
- Pre-assembled for quick and easy installation
- Resistant to corrosion, moisture and sunlight to prevent cracks
- Working Temperatures: -20°C to 80°C Dry / 60°C Wet / 70°C Oil
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Each in Package Height (in) * | 12 |
| Each in Package Width (in) * | 4 |
| Each in Package Length/Depth (in) * | 3 |
| Each in Package Weight (lbs) * | 1.8 |
| Inner Pack Weight (lbs) * | 12.87 |
